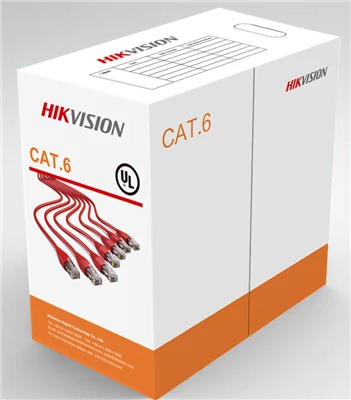

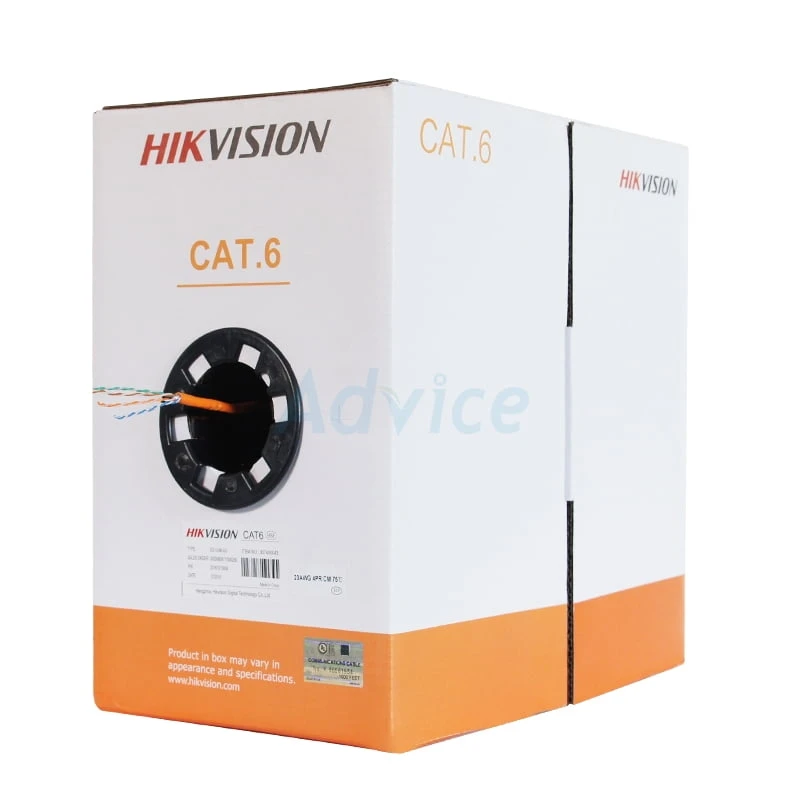

HIKVISION CAT6 305m Network Cable [DS-1LN6-UU] UTP CAT 6 Network Cable Color : Orange HIKVISION CAT6 UTP CABLE 305M 23AWG PVC Hikvision Cat6 Lan Cable DS-1LN6-UU Lan Cable solid cable is used for computer networking, data, voice, or security system installation. U/UTP 4Pairs cable-category 6- PVC Sheath Additional Info : Sheath Printing Sheath Printing: | HIKVISION  E484059-Z  (UL)  CM  4PR  23AWG        75℃  U/UTP  CAT6  VERIFIED  TO  ANSI/TIA-568-C.2   PVC  ****m mm/dd/yyyy Category Category: | U/UTP CAT6-4P-PVC-CM Test Standard Test Standard: | ISO/IEC11801、TIA-568-C.2  、YD/T1019 Conductor Material: | SOLID-Bare Copper Nom.O.D.(mm): | 0.565 up +0.005 down -0.005 Insulation Material: | HDPE Diameter: | 1.02±0.03mm Sheath Thickness: | 0.55±0.05 mm External O.D.: | 6.2±0.4 mm Surface: | Clean,Frap,Satiation Material: | PVC(complies RoHS),CM Color: | Multiple Surface Printing Letter height: | 3.0±0.3mm Print error & Space: | Black Print error & Space: | ≤±0.5%，1m Core Color Core Color: | 1 White- Blue /Blue 2 White-Orange /Orange 3 White-Green /Green 4 White- Brown /Brown Packing Packing: | Wooden Tray & Carton Carton dimension Carton dimension: | Per request Packing length Packing length: | 305±1.5m Rip-cord Rip-cord: | Yes Drain wire Drain wire: | No Sheath Physical Before Aging Tensile Strength (Mpa): | ≥13.5 Elongation(%): | ≥150 Aging Period (℃×hrs): | 100℃×24h×10d After Aging Tensile Strength(Mpa) : | ≥12.5 Elongation(%): | ≥125 Cold bend: | -20±2℃×4h Electrical 1.0-250.0MHz Impedance ((Ω): | 100±15 1.0-250.0MHz Delay Skew (ns/100m): | ≤45 DC Resistance (Ω/100m) max: | 9.38 DC Conductor Resistance Unbalance (%) max: | 5.0 Ambient temperature Ambient temperature: | -20℃ – 75℃
